Amarr 2042 Polyurethane Insulated
Overview
High R-Value Doors to Meet All Your Needs
Extra Heavy-Duty top-of-the-line high R-value door! Polyurethane Insulated Amarr 2042 is constructed using 20-Gauge exterior steel foamed with polyurethane insulation, creating a strong monolithic panel that is energy efficient. This rugged commercial overhead sectional door is perfect for heavy industrial applications and comes with a 10-year warranty; the maximum standard width is 40’2″, and the maximum standard. height is 26′ 1″.
- Rapid Install Artificial Lift: Designed specifically for commercial warehouse and dock doors and saves approximately 20 minutes of installation time per door due to fewer jamb attachments and a pre-assembled, one-piece track. Available for door sizes up to 9’4″x10′.
- Track: All Amarr doors are available with both 2″ or 3″ track in Standard Lift, High Lift, Vertical Lift, Rapid Install Vertical Lift, Low Headroom, and Follow the Roof Pitch
- Springs: Torsion springs are oil tempered, helical wound, and custom computed for each door for a minimum 10,000 cycle life. Optional springs are available for up to 100,000 cycles.
-
Hardware: Galvanized steel hinges and track brackets. All rollers have a minimum of 10-ball bearings.
- Maximum Door Size: 40′ 2″ W x 26′ 1″ H
- Steel Thickness: 27 ga
Available with Rapid Install
The Rapid Install system for Amarr’s Vertical Lift doors is designed specifically for commercial sectional doors, saving approximately 20 minutes of installation time per door.
Simplified Track & Hardware
- Heavy .063 gauge 1-piece 2″ and 3″ vertical track
- Preassembled end-bearing plate
- Self-lubricating nylon rollers
- Widebody hinges
- Optional keyed hollow shaft
Reduced Installation Time
- Engineered for one-man installation
- Fewer trips up the wall
- Fewer components to assemble
- 10 fewer wall attachments
True White

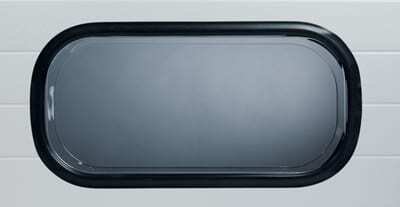

26″ x 13″ insulated

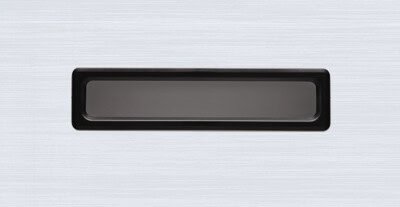

24″ x 6″ insulated
24″ x 12″ insulated

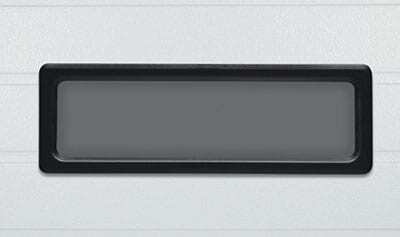

24″ x 8″ insulated
| R-Value | 19.4 |
| Steel Thickness | 20 / 27 ga |
| Panel Design | Flush Stucco Panel |
| Steel Embossment | Stucco |
| Construction Layers | Three |
| Max Std Width | 40’2″ |
| Max Std Height | 26’1″ |
| Door Thickness | 2″ (5.1cm) |
| U-Value | 0.052 |
Steel + Insulation + Steel
- Steel Exterior
- Polyurethane Insulation
- Steel Interior
- Interior Hinge Reinforcement
- Bottom Weather Sea
- R-Value*: 19.4
- 2” thick
- 20-gauge steel front
- 27-gauge steel interior panel
- 20-gauge continuous strip hinge reinforcement
- Pass door option available
- Available with Rapid Install
- 10-Year Limited Warranty
Brochures
Energy Efficient Polyurethane Insulated Brochure – Download pdf
Warranty
Commercial Sectional Warranty – Download pdf
